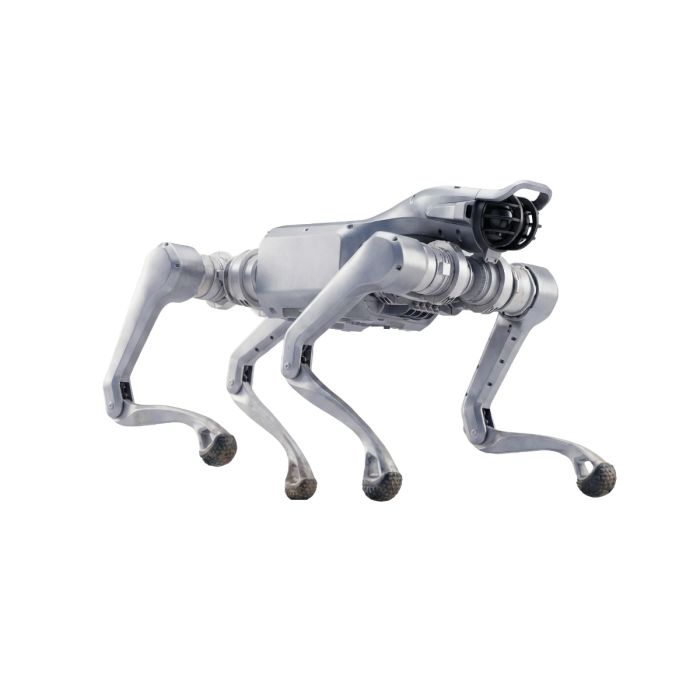

Unitree As2 EDU Standard Quadruped Robot Dog
Unitree As2 EDU Standard (EDU-U1) — Your Gateway to Open Quadruped AI Development Powerful Motors, Exceptional Payload Maximum joint torque: Approx. 90 N·m, torque-to-weight ratio: Approx. 5 N·m/kg (self-weight: 18 kg). All-Weather.
Em estoque
- MARCA:
- UNITREE ROBOTICS
- MODELO:
- AS2 EDU STANDARD
- NÚMERO DA PEÇA #:
- As2 EDU-U1
- ORIGIN:
- China
- Warranty:
- 12 MESES
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Unitree-AS2-EDU
US$ 11.900,00
Unitree As2 EDU Standard (EDU-U1) — Your Gateway to Open Quadruped AI Development
Powerful Motors, Exceptional Payload
Maximum joint torque: Approx. 90 N·m, torque-to-weight ratio: Approx. 5 N·m/kg (self-weight: 18 kg).
All-Weather Adaptability, Reliable Operation
IP54 rainproof design, stable performance in complex weather and environments.
The Unitree As2 EDU Standard is the entry-level configuration of Unitree's most advanced developer-focused robot dog. It packages the full industrial-grade As2 EDU mechanical platform with an NVIDIA Jetson Orin Nano (40 TOPS) high-performance expansion dock — giving engineers, researchers, and robotics teams an immediate foundation for custom AI, navigation, and locomotion development.
Key Features
- NVIDIA Jetson Orin Nano — 40 TOPS onboard AI compute for deploying neural networks, perception pipelines, and embodied AI models directly on the robot
- 90 N·m Maximum Joint Torque — The highest in the As2 family; precise, responsive movement across all terrain types
- Industrial 64–128-Line LiDAR — Wide-angle spatial perception for mapping and obstacle avoidance
- IP54 Protection — Dust and rain resistant; built for indoor labs and outdoor field conditions alike
- GPS + 4G (included, user-authorized activation)
- 4+ Hours Runtime / ~20 km Range unloaded; 2.5 hours / ~13 km with a 15 kg payload
- 15,000 mAh Battery + Fast Charging (51V 9A) + Charging Pad included
- Custom Development Supported — Robot models, simulation interfaces, full Isaac Sim compatibility
- Depth Camera: Optional add-on
- 1-Year Warranty + comprehensive development manuals and ecosystem support
Technical Specifications
| Spec | Value |
|---|---|
| Compute | NVIDIA Jetson Orin Nano (40 TOPS) |
| Max Joint Torque | ~90 N·m |
| Travel Speed | 0–3.7 m/s (peak ~5 m/s) |
| Max Standing Load | ~65 kg |
| Walking Load | ~15 kg |
| Stair Climbing | 25 cm |
| Gradeability | ~40° |
| Protection | IP54 |
| LiDAR | Industrial 64–128-line |
| Depth Camera | Optional |
| Battery | 15,000 mAh |
| Runtime (unloaded) | 4+ hours / ~20 km |
| Runtime (15 kg) | ~2.5 hours / ~13 km |
| GPS / 4G | Yes (auth required) |
| Isaac Sim | Supported |
| Custom Dev | Supported |
| Warranty | 1 year |
Especificações
12
Degrees of Freedom
3
metros/segundo
Max Speed
ATÉ 2 HORAS
Runtime
Geral
MARCA
UNITREE ROBOTICS
MODELO
AS2 EDU STANDARD
NÚMERO DA PEÇA #
As2 EDU-U1
TIPO DE ROBÔ
QUADRÚPEDE
USO DE ROBÔ
INDUSTRIAIS
Physical
COMPRIMENTO
72.0 cm
LARGURA
37.8 cm
PROFUNDIDADE
45.7 cm
PESO
Cerca de 18kg
Mobility
DOF TOTAL
12 DOF
Performance
VELOCIDADE MÁXIMA
3 METROS/SEGUNDO
ÂNGULO DE INCLINAÇÃO
30 GRAUS
TEMPERATURA OPERACIONAL
-20°C A 50°C (-4°F - 122°F)
Connectivity
CONECTIVIDADE
BLUETOOTH 5.2, WI-FI 6
Software
DESENVOLVIMENTO SECUNDÁRIO
NÃO COMPATÍVEL
Bateria + alimentação
TEMPO DE EXECUÇÃO
ATÉ 2 HORAS
